TC7WZ14FK(TE85L,F) footprint, schematic symbol and 3D model by Toshiba

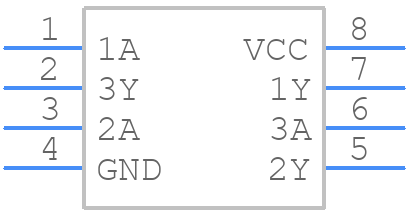

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC7WZ14FK(TE85L,F)
Part Number TC7WZ14FK(TE85L,F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP8-P-0.50A_11
Released Date Jul 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TC7WZ14FK(TE85L,F) Details

Manufacturer Part Number:
TC7WZ14FK(TE85L,F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SSOP-8
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Family:
LVC/LCX/Z
JESD-30 Code:
R-PDSO-G8
Length:
2.3 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
INVERTER
Max I(ol):
0.032 A
Number of Functions:
3
Number of Inputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Equivalence Code:
TSSOP8,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Power Supply Current-Max (ICC):
50 mA
Prop. Delay@Nom-Sup:
7.5 ns
Propagation Delay (tpd):
15.6 ns
Qualification Status:
Not Qualified
Schmitt Trigger:
YES
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm

TC7WZ14FK(TE85L,F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TC7WZ14FK is 2.3V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.8V to 6.0V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
To ensure proper power-on and power-off sequencing, it's recommended to follow the guidelines in the datasheet. Typically, the VCC pin should be powered on before the input signals, and the input signals should be stable before the output is enabled. During power-off, the input signals should be disabled before the VCC pin is powered off.
The maximum allowable power dissipation for the TC7WZ14FK is dependent on the ambient temperature and the package type. According to the datasheet, the maximum power dissipation is 500mW at an ambient temperature of 70°C for the TE85L package. However, it's essential to perform thermal calculations and ensure the device is properly heat-sinked to prevent overheating.
The TC7WZ14FK is a low-voltage, low-power CMOS logic gate, and it's not designed for high-frequency applications. While it can operate at frequencies up to 100MHz, it's not recommended for use in high-frequency applications due to its limited bandwidth and potential for signal degradation. For high-frequency applications, consider using a device specifically designed for high-speed operation.
The TC7WZ14FK has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials during storage and transportation.

Trust Checks

Community Provided

System Verified

Community Approved

TC7WZ14FK(TE85L,F) Overview

Use the download button to access the TC7WZ14FK(TE85L,F) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TC7WZ, or try a keyword search, such as Gates
