TC9164AF - Toshiba

TC9164AF Details

• Manufacturer Part Number:

  TC9164AF

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

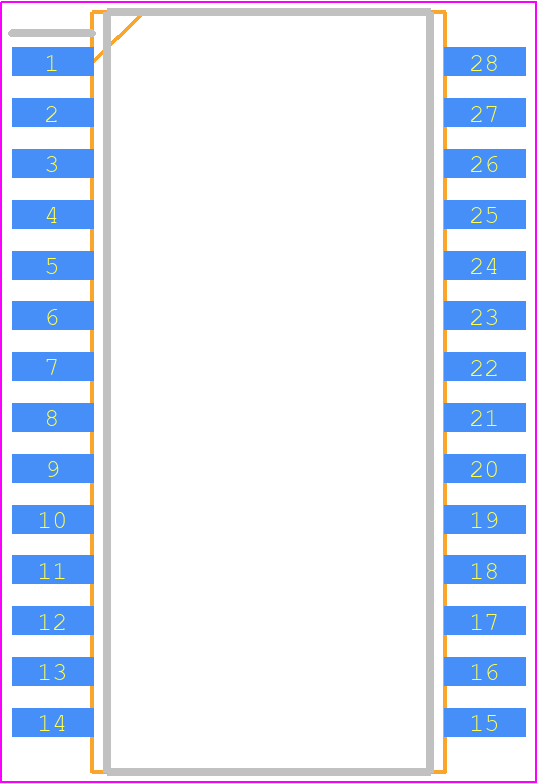

• Package Description:

  0.450 INCH, 1.27 MM PITCH, PLASTIC, SOP-28

• Pin Count:

  28

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Toshiba America Electronic Components

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  18.5 mm

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  28

• On-state Resistance-Max (Ron):

  100 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.5

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.7 mm

• Supply Current-Max (Isup):

  0.1 mA

• Supply Voltage-Max (Vsup):

  34 V

• Supply Voltage-Min (Vsup):

  16 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  8.8 mm
