TC9459N - Toshiba

TC9459N Details

• Manufacturer Part Number:

  TC9459N

• Part Life Cycle Code:

  Active Unconfirmed

• Part Package Code:

  DIP

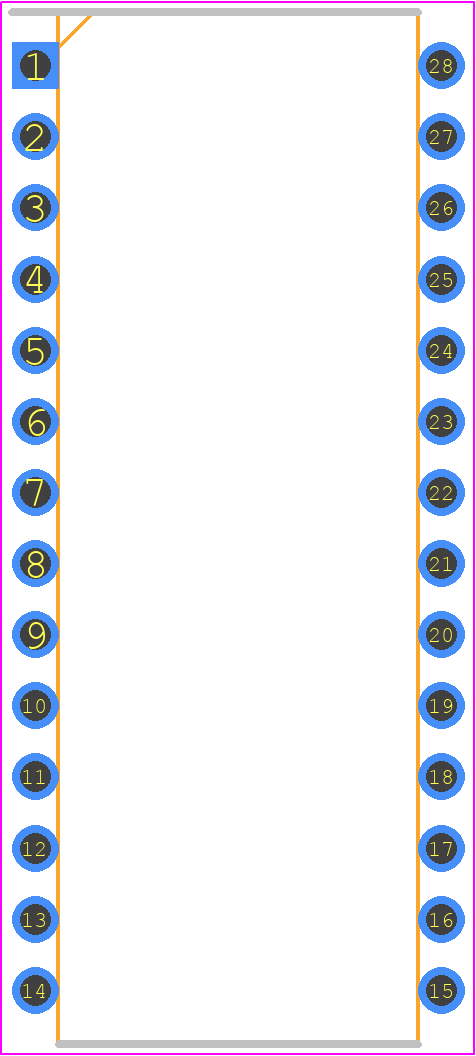

• Package Description:

  0.400 INCH, 1.78 MM PITCH, PLASTIC, SDIP-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  2

• Additional Feature:

  IT CAN ALSO OPERATES WITH 6V TO 18V SINGLE POWER SUPPLY

• Channel Separation:

  100 dB

• Consumer IC Type:

  VOLUME CONTROL CIRCUIT

• Harmonic Distortion:

  0.005%

• JESD-30 Code:

  R-PDIP-T28

• JESD-609 Code:

  e0

• Length:

  25.6 mm

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  2 mA

• Supply Voltage-Max (Vsup):

  17 V

• Supply Voltage-Min (Vsup):

  6 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
