TCA785 - Infineon

Description: Infineon TCA785 Phase Control Triac Driver, 8 → 18 V, 16-Pin, PDIP

Download TCA785 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

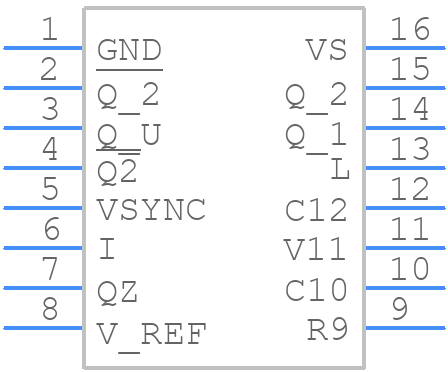

TCA785 - Infineon - PCB symbol
click to zoom
PCB Footprints

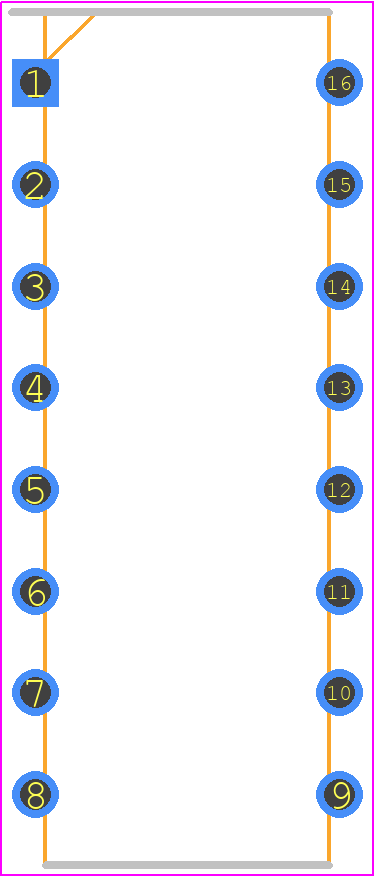

TCA785 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP16
click to zoom
3D Models
TCA785 - Infineon - 3D model - Dual-In-Line Packages - PDIP16
click to zoom

TCA785 Details

  • Manufacturer Part Number:

    TCA785

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

TCA785 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Choose R1 and R2 resistors based on the desired gain and bandwidth. Select C1 and C2 capacitors based on the desired cutoff frequency and noise filtering. Use a 1% tolerance for resistors and a 10% tolerance for capacitors.
  • The maximum allowed voltage on the input pins is VCC + 0.3V. Exceeding this voltage may damage the device.
  • Use a shielded enclosure, keep the PCB away from radiating sources, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling to minimize electromagnetic radiation.
  • The thermal resistance (RthJA) of the TCA785 package is approximately 40 K/W. Ensure proper heat sinking and thermal management to prevent overheating.
