TCD-10-1W+ - Mini-Circuits

Description: TCD-10-1W+ 10.3 dB SMT Directional Coupler, 10 - 750 MHz, 50Ω

Download TCD-10-1W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

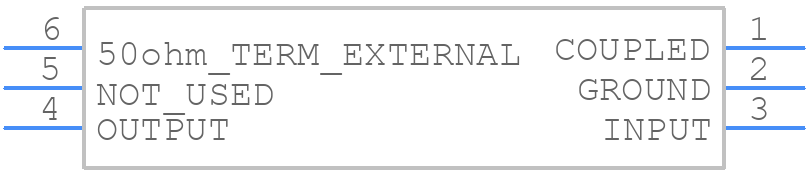

TCD-10-1W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCD-10-1W+ - Mini-Circuits PCB footprint - Other - Other - TCD-10-1W+
click to zoom
3D Models
TCD-10-1W+ - Mini-Circuits - 3D model - Other - TCD-10-1W+
click to zoom

TCD-10-1W+ Details

  • Manufacturer Part Number:

    TCD-10-1W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CASE DB714, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.31

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2.1 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    750 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.3
