TCD-20-4+ - Mini-Circuits

Description: RF Directional Coupler Cellular 5MHz ~ 1GHz 20dB 1W 6-SMD, Flat Leads

Download TCD-20-4+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

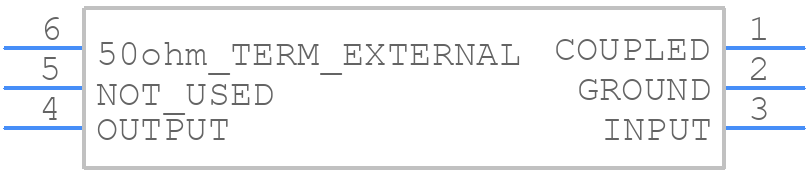

Symbol
TCD-20-4+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCD-20-4+ - Mini-Circuits PCB footprint - Other - Other - TCD-20-4+-1
click to zoom
3D Models
TCD-20-4+ - Mini-Circuits - 3D model - Other - TCD-20-4+-1
click to zoom

TCD-20-4+ Details

  • Manufacturer Part Number:

    TCD-20-4+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE DB714, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.65

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.1 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.2

TCD-20-4+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TCD-20-4+ is -40°C to +85°C.
  • Yes, the TCD-20-4+ is designed to operate in humid environments, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a star-grounding scheme to minimize noise and ensure optimal performance.
  • Yes, the TCD-20-4+ is designed to withstand moderate vibration, but it's recommended to follow proper mounting and securing procedures to prevent mechanical stress.
  • Mini-Circuits recommends using a combination of ceramic and electrolytic capacitors to decouple the power supply, with a minimum of 10uF capacitance per supply pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCD-20-4+ Overview

Use the download button to access the TCD-20-4+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCD-2, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
