TCD1201D - Toshiba

TCD1201D Details

• Manufacturer Part Number:

  TCD1201D

• Part Life Cycle Code:

  Obsolete

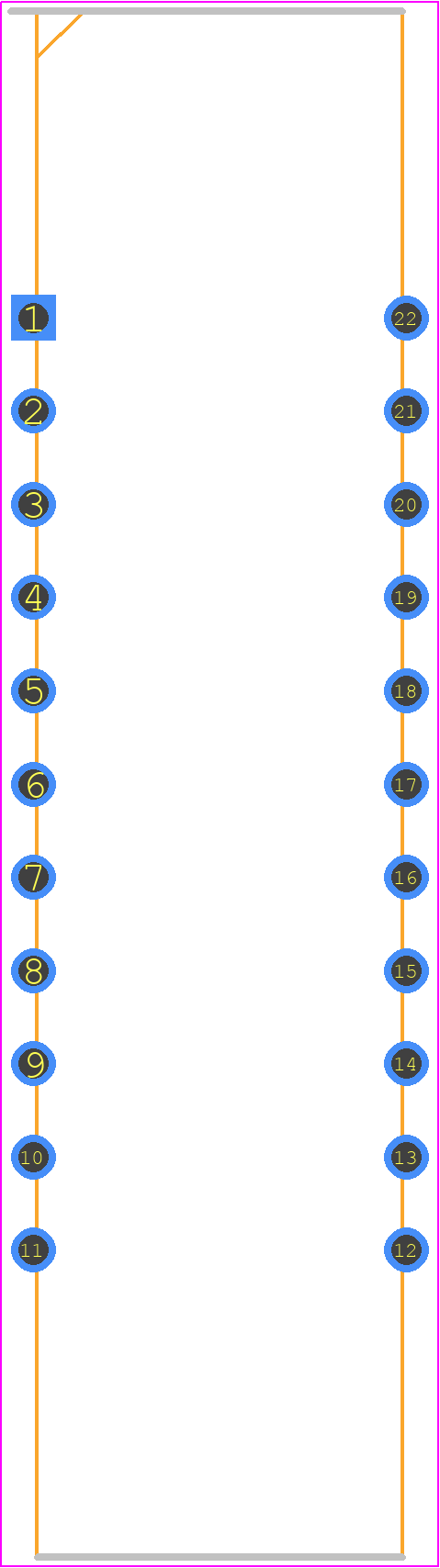

• Package Description:

  0.400 INCH, 2.54 MM PITCH, WINDOWED, CERDIP-22

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Array Type:

  LINEAR

• Body Breadth:

  10.16 mm

• Body Height:

  3.92 mm

• Body Length or Diameter:

  41.6 mm

• Housing:

  CERAMIC, GLASS-SEALED

• Mounting Feature:

  THROUGH HOLE MOUNT

• Output Range:

  1.50-4.50V

• Output Type:

  ANALOG VOLTAGE

• Package Shape/Style:

  RECTANGULAR

• Pixel Size:

  14X14 µm

• Sensitivity (V/lx.s):

  80 V/lx.s

• Sensors/Transducers Type:

  IMAGE SENSOR,CCD

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Surface Mount:

  NO

• Termination Type:

  SOLDER
