Part Image

TCD1209DG - Toshiba

Description: TOSHIBA CCD Linear Image Sensor CCD (Charge Coupled Device)

Download TCD1209DG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TCD1209DG model

Email notifications will be applied after download.

Send part feedback

Symbol

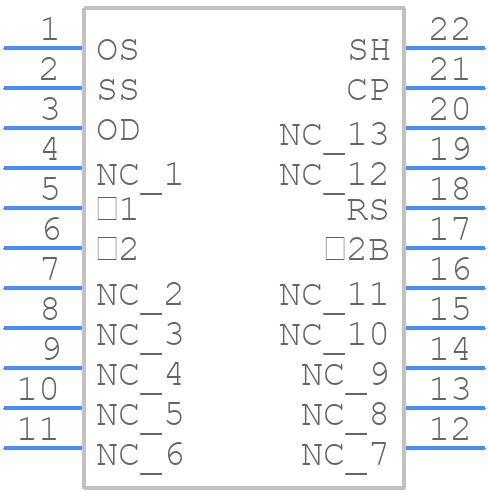

TCD1209DG - Toshiba - PCB symbol

PCB Footprints

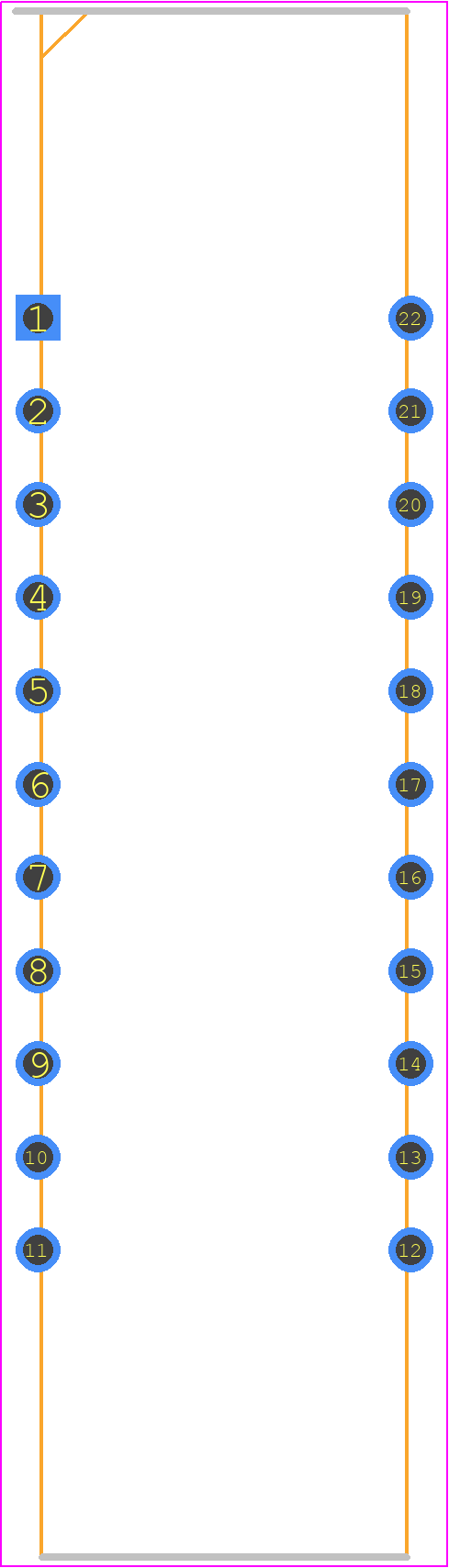

TCD1209DG - Toshiba PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - WDIP22 -G-400-2.54H

3D Models

TCD1209DG - Toshiba - 3D model - Ceramic Dual-In-Line Packages - WDIP22 -G-400-2.54H

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCD1209DG
Part Number TCD1209DG
Manufacturer Toshiba
Pin Count 22
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - WDIP22 -G-400-2.54H
Released Date Sep 20, 2024
Last Modified Date Mar 17, 2025 3:08 PM UTC
Pinout / Pin List Click Here (Member Only)

TCD1209DG Details

Manufacturer Part Number:
TCD1209DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Toshiba America Electronic Components
YTEOL:
4.9
Array Type:
LINEAR
Horizontal Pixel:
2048
Housing:
CERAMIC
Output Range:
4-7V
Output Type:
VOLTAGE OUTPUT
Pixel Size:
14X14 µm
Sensors/Transducers Type:
IMAGE SENSOR,CCD
Supply Voltage-Max:
13 V
Vertical Pixel:
2048

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TCD1209DG Overview

Use the download button to access the TCD1209DG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCD12, or try a keyword search, such as Image Sensors
