TCD1703C - Toshiba

TCD1703C Details

• Manufacturer Part Number:

  TCD1703C

• Part Life Cycle Code:

  Active Unconfirmed

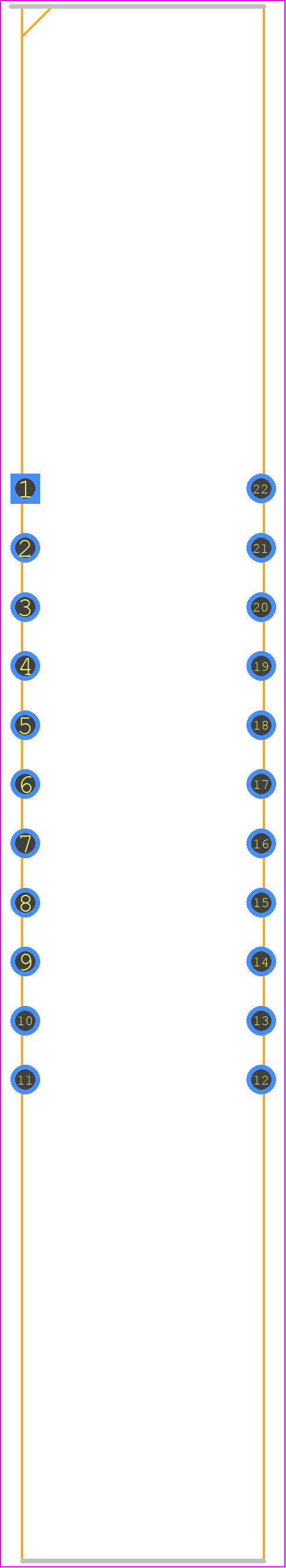

• Package Description:

  0.400 INCH, 2.54 MM PITCH, WINDOWED, CERAMIC, DIP-22

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  2

• Array Type:

  LINEAR

• Body Breadth:

  10.4 mm

• Body Height:

  4.49 mm

• Body Length or Diameter:

  66 mm

• Dynamic Range:

  64 dB

• Horizontal Pixel:

  7500

• Housing:

  CERAMIC, METAL-SEALED COFIRED

• Mounting Feature:

  THROUGH HOLE MOUNT

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -25 °C

• Output Range:

  4-7V

• Output Type:

  ANALOG VOLTAGE

• Package Shape/Style:

  RECTANGULAR

• Pixel Size:

  7X7 µm

• Sensitivity (V/lx.s):

  15 V/lx.s

• Sensors/Transducers Type:

  IMAGE SENSOR,CCD

• Supply Voltage-Max:

  13 V

• Supply Voltage-Min:

  11.4 V

• Surface Mount:

  NO

• Termination Type:

  SOLDER

• Vertical Pixel:

  1
