- Part Number TCD1711DG
- Manufacturer Toshiba
- Pin Count 22
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages

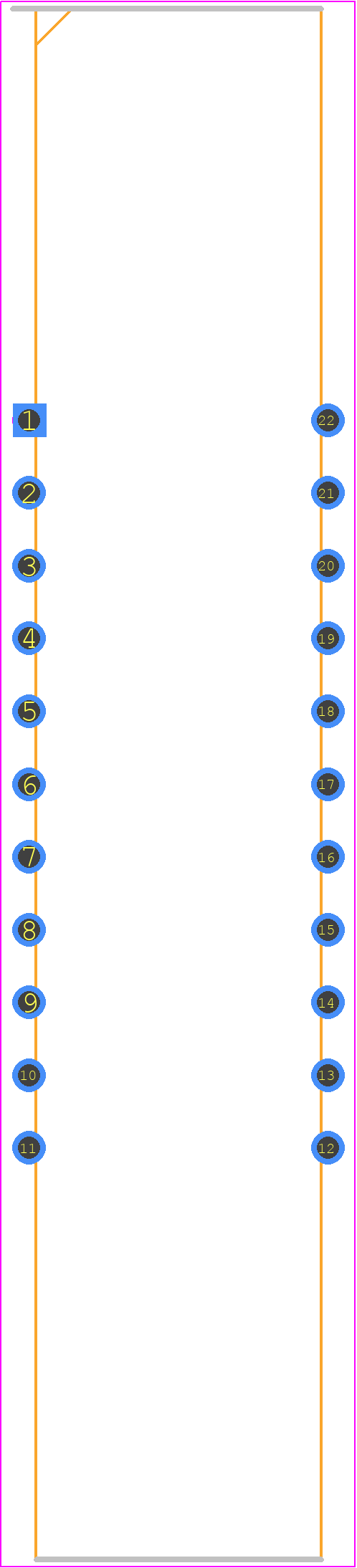

- Footprint Name Ceramic Dual-In-Line Packages - WDIP22-G-400-2.54D
- Released Date May 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCD1711DG Details
-
Manufacturer Part Number:
TCD1711DG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Manufacturer:
Toshiba America Electronic Components
-
YTEOL:
5
-
Array Type:
LINEAR
-
Dynamic Range:
65.1 dB
-
Horizontal Pixel:
7450
-
Mounting Feature:
THROUGH HOLE MOUNT
-
Operating Temperature-Max:
60 °C
-
Output Range:
3.0-6.0V
Trust Checks
Community Provided
System Verified
Community Approved
TCD1711DG Overview

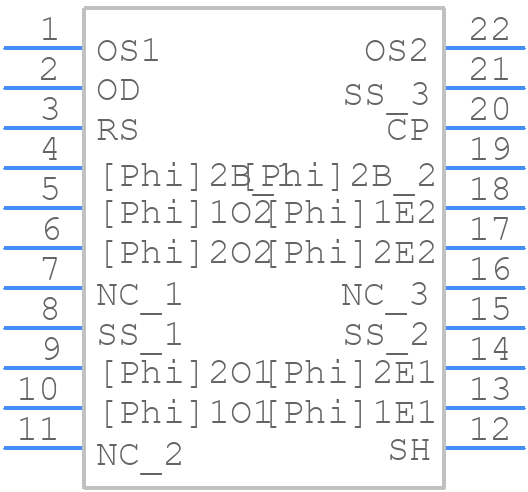

Use the download button to access the TCD1711DG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TCD17,
or try a keyword search, such as Image Sensors
