TCD2564DG - Toshiba

TCD2564DG Details

• Manufacturer Part Number:

  TCD2564DG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

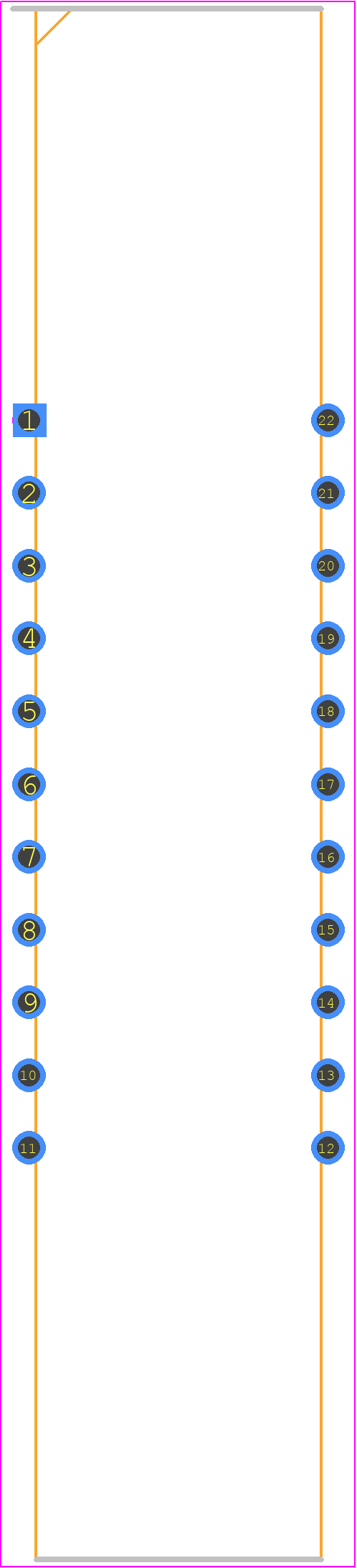

• Package Description:

  DIP-22

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  4.9

• Additional Feature:

  SENSITIVITY FOR GREEN 12.5 V/LX.S, BLUE 5 V/LX.S

• Array Type:

  LINEAR

• Body Breadth:

  10.16 mm

• Body Height:

  4.2 mm

• Body Length or Diameter:

  53.6 mm

• Horizontal Pixel:

  5400

• Housing:

  CERAMIC

• Mounting Feature:

  THROUGH HOLE MOUNT

• Operating Temperature-Max:

  60 °C

• Output Range:

  3.5-6.5V

• Output Type:

  VOLTAGE OUTPUT

• Package Shape/Style:

  RECTANGULAR

• Pixel Size:

  7X7 µm

• Sensitivity (V/lx.s):

  12.5 V/lx.s

• Sensors/Transducers Type:

  IMAGE SENSOR,CCD

• Spectral Response (nm):

  400-700

• Supply Voltage-Max:

  10.5 V

• Supply Voltage-Min:

  9.5 V

• Surface Mount:

  NO

• Termination Type:

  SOLDER

• Vertical Pixel:

  3
