Part Image

TCD2719DG - Toshiba

Description: Image Sensors,Pixel of Image Sensing Elements:7300,Pixel size (µm) pitch :10,Sheet size:A3,Input signal:CMOS level 5V drive (all input clock)

Download TCD2719DG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TCD2719DG model

Email notifications will be applied after download.

Send part feedback

Symbol

TCD2719DG - Toshiba - PCB symbol

PCB Footprints

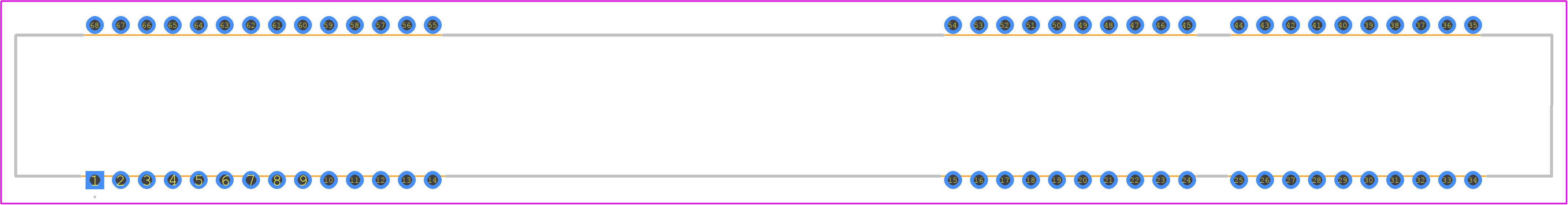

TCD2719DG - Toshiba PCB footprint - Other - Other - TCD2719DG-1

3D Models

TCD2719DG - Toshiba - 3D model - Other - TCD2719DG-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCD2719DG
Part Number TCD2719DG
Manufacturer Toshiba
Pin Count 68
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - TCD2719DG-1
Released Date Mar 27, 2023
Last Modified Date Mar 27, 2023 5:10 AM UTC
Pinout / Pin List Click Here (Member Only)

TCD2719DG Details

Manufacturer Part Number:
TCD2719DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Toshiba America Electronic Components
YTEOL:
4.9
Array Type:
LINEAR
Housing:
CERAMIC
Output Range:
3.5-6.5V
Output Type:
VOLTAGE OUTPUT
Pixel Size:
10X10 µm
Sensors/Transducers Type:
IMAGE SENSOR,CCD
Spectral Response (nm):
400-700
Supply Voltage-Max:
10.5 V

Trust Checks

Community Provided

System Verified

Community Approved

TCD2719DG Overview

Use the download button to access the TCD2719DG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCD27, or try a keyword search, such as Image Sensors
