TCD2728DG - Toshiba

Description: 3.3V & 10.0V, 7500 elements x 3 lines, 4.7μm by 4.7μm on 4.7μm center

Download TCD2728DG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TCD2728DG model

Email notifications will be applied after download.

Send part feedback

Symbol

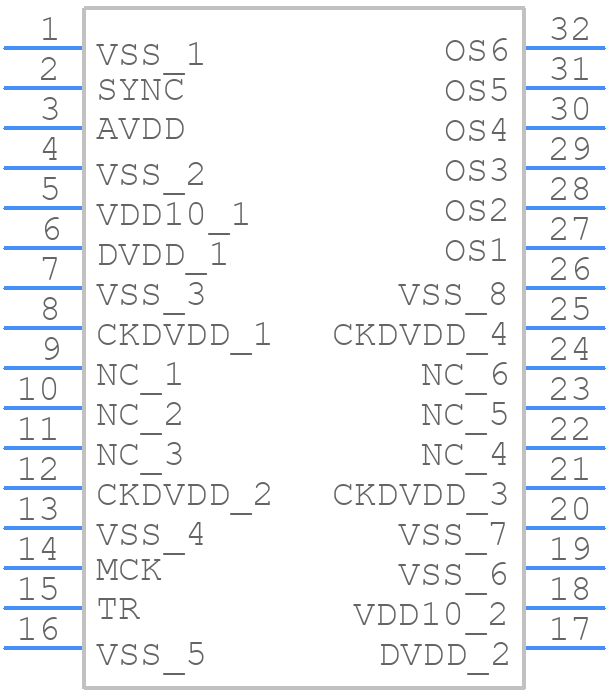

TCD2728DG - Toshiba - PCB symbol

PCB Footprints

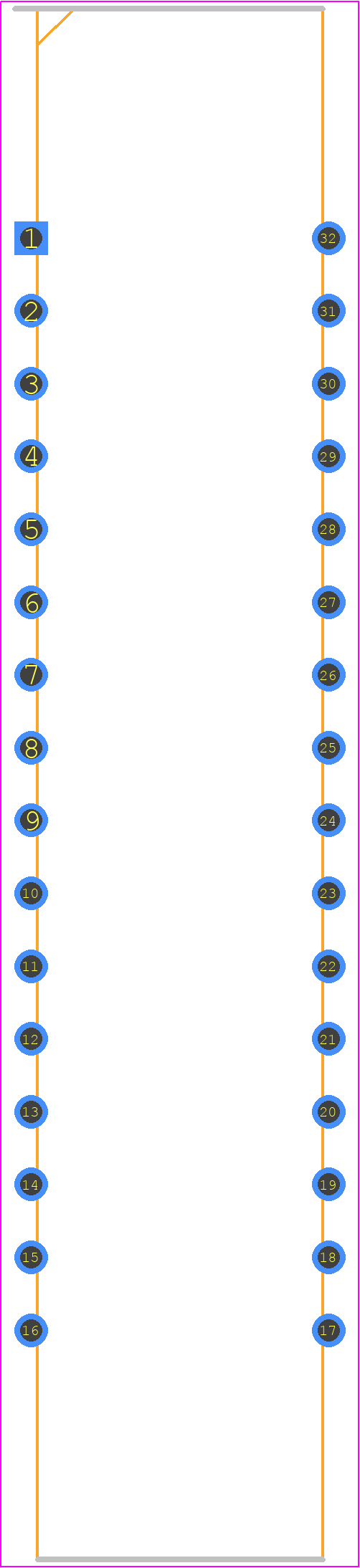

TCD2728DG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - WDIP32-G-400-2.54_2026

3D Models

TCD2728DG - Toshiba - 3D model - Dual-In-Line Packages - WDIP32-G-400-2.54_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCD2728DG
Part Number TCD2728DG
Manufacturer Toshiba
Pin Count 32
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - WDIP32-G-400-2.54_2026
Released Date Feb 20, 2026
Last Modified Date Feb 20, 2026 11:14 AM UTC
Pinout / Pin List Click Here (Member Only)

TCD2728DG Details

Manufacturer Part Number:
TCD2728DG
Part Life Cycle Code:
Active
Manufacturer:
Toshiba America Electronic Components
YTEOL:
5
Sensors/Transducers Type:
IMAGE SENSOR,CCD

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TCD2728DG Overview

Use the download button to access the TCD2728DG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCD27, or try a keyword search, such as Image Sensors
