TCK305G - Toshiba

Description: 28 V, Single input – Single Output Load Switch IC with Over Voltage Protection

Download TCK305G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

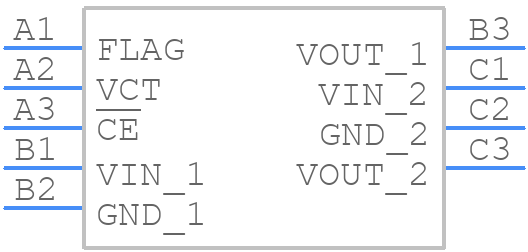

TCK305G - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK305G - Toshiba PCB footprint - BGA - BGA - S-UFBGA9-0202-0.50-001-1
click to zoom
3D Models
TCK305G - Toshiba - 3D model - BGA - S-UFBGA9-0202-0.50-001-1
click to zoom

TCK305G Details

  • Manufacturer Part Number:

    TCK305G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCK305G Overview

Use the download button to access the TCK305G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCK30, or try a keyword search, such as Peripheral Drivers
