TCLAMP0602N.TCT - SEMTECH

Description: ESD Suppressors / TVS Diodes LOW CAP TVS & TELCOM INTERFACE

Download TCLAMP0602N.TCT Model

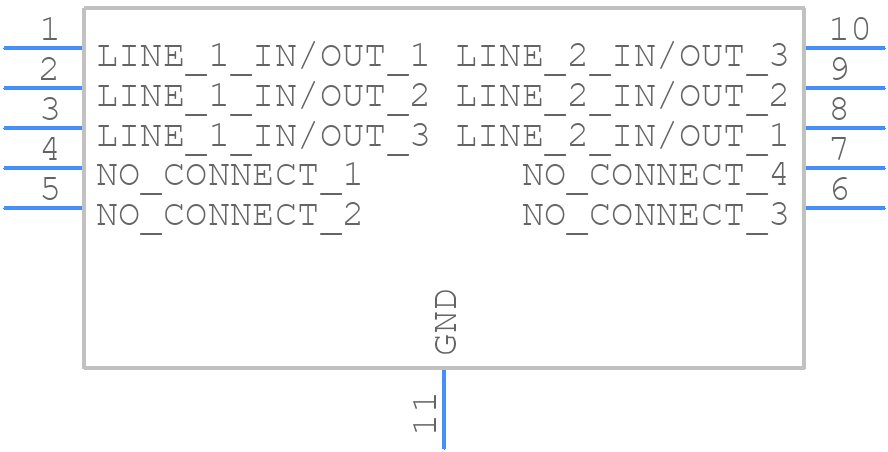

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCLAMP0602N.TCT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - SLP2626P10_
click to zoom
3D Models
TCLAMP0602N.TCT - SEMTECH  - 3D model - Small Outline No-lead - SLP2626P10_
click to zoom

TCLAMP0602N.TCT Details

  • Manufacturer Part Number:

    TCLAMP0602N.TCT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    2.60 X 2.60, 0.60 MM HEIGHT, ROHS COMPLIANT, SLP-10

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7.6

  • Breakdown Voltage-Min:

    6.8 V

  • Clamping Voltage-Max:

    29 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    2500 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    6 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TCLAMP0602N.TCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TCLAMP0602N.TCT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a low-ESR capacitor between the VIN and GND pins.
  • The TCLAMP0602N.TCT is designed to clamp overvoltage conditions, protecting the downstream circuitry from damage. It can handle voltages up to 60V, and will clamp the output to a safe level to prevent damage to the protected circuit.
  • The response time of the TCLAMP0602N.TCT is typically in the range of 1-2 nanoseconds, making it suitable for high-speed applications where fast overvoltage protection is required.
  • Yes, the TCLAMP0602N.TCT is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • The TCLAMP0602N.TCT is designed to have minimal impact on signal integrity. It has a low capacitance and low inductance, which helps to minimize signal distortion and attenuation. However, it's still important to consider the device's impact on signal integrity in high-frequency applications.
