A good PCB layout for the TCLAMP3312N.TCT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a low-ESR capacitor between the VCC and GND pins.
The recommended capacitor value for the TCLAMP3312N.TCT is between 1nF to 10nF. A higher capacitance value can provide better filtering, but may also increase the device's response time. The optimal value depends on the specific application and noise environment.
The TCLAMP3312N.TCT can handle surge currents up to 30A, but the device's performance and reliability may be affected by repeated exposure to high surge currents. It's recommended to use the device within its specified operating conditions to ensure optimal performance and reliability.
The TCLAMP3312N.TCT is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range to ensure optimal performance and reliability.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the device, and avoid applying excessive force or pressure to the device during soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCLAMP3312N.TCT Overview

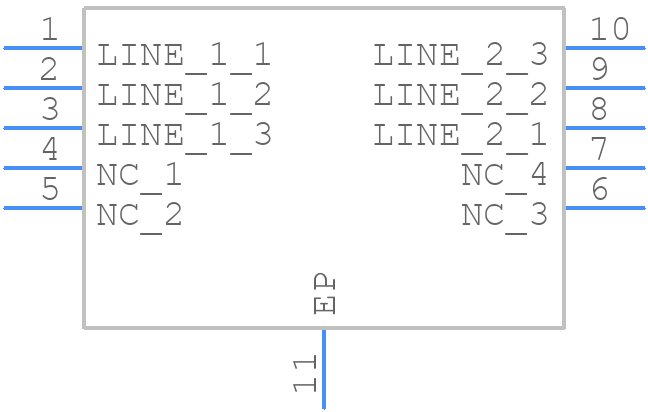

Use the download button to access the TCLAMP3312N.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCLAM,
or try a keyword search, such as Transient Suppressors
