- Part Number TCM1-1X+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TCM1-1X+-1
- Released Date Aug 17, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCM1-1X+ Details
-
Manufacturer Part Number:
TCM1-1X+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
5.5
-
Additional Feature:
LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO
-
Cut-off Frequency-Max:
500 MHz
-
Cut-off Frequency-Min:
1.5 MHz
-
Height:
4.06 mm
TCM1-1X+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
-
The TCM1-1X+ requires a 50-ohm termination to ensure maximum power transfer and minimum reflections. The termination should be placed as close to the device as possible, and the type of termination (e.g., series or parallel) depends on the specific application and frequency range.
-
The TCM1-1X+ has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper heat sinking and thermal management in high-temperature applications.
-
While the TCM1-1X+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and power handling. It's recommended to consult with a Mini-Circuits application engineer for guidance on impedance matching and circuit design.
-
Common issues with the TCM1-1X+ include poor return loss, high insertion loss, and overheating. To troubleshoot these issues, check the PCB layout and termination, ensure proper power supply and biasing, and verify that the device is operating within its specified frequency range and power handling. Mini-Circuits also provides application notes and technical support to help with troubleshooting and optimization.
Trust Checks
Expert Contribution
System Verified
Community Approved
TCM1-1X+ Overview

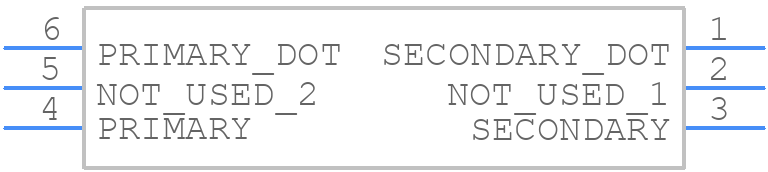

Use the download button to access the TCM1-1X+ schematic symbol, PCB footprint, and 3D model.
