TCM1608G-201-4P-T200 - TDK

Description: Common Mode Filters / Chokes, |Z|=200? at 100MHz, L x W x T :

Download TCM1608G-201-4P-T200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

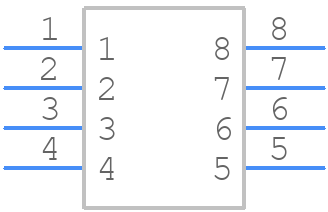

Symbol
TCM1608G-201-4P-T200 - TDK - PCB symbol
click to zoom
PCB Footprints
TCM1608G-201-4P-T200 - TDK PCB footprint - Other - Other - TCM1608G-900-4P
click to zoom
3D Models
TCM1608G-201-4P-T200 - TDK - 3D model - Other - TCM1608G-900-4P
click to zoom

TCM1608G-201-4P-T200 Details

  • Manufacturer Part Number:

    TCM1608G-201-4P-T200

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • DC Resistance-Max:

    4 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.4 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Impedance:

    200 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.05 A

  • Rated Voltage:

    5 V

  • Width:

    0.8 mm

TCM1608G-201-4P-T200 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TCM1608G-201-4P-T200 can be found in the TDK Corporation's application note 'Recommended Land Pattern for Chip Components' (document number: TDK_EPCOS_Land_Pattern_2019).
  • The TCM1608G-201-4P-T200 has a high power density, so proper thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance. The thermal resistance of the component can be found in the datasheet.
  • The maximum operating temperature range for the TCM1608G-201-4P-T200 is -40°C to +125°C, as specified in the datasheet. However, the component's performance and lifespan may be affected if operated at the extreme ends of this range.
  • The TCM1608G-201-4P-T200 is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it's recommended to consult with TDK Corporation's technical support team to discuss the component's suitability and potential modifications to the design.
  • To ensure the reliability of the TCM1608G-201-4P-T200 in a humid environment, follow proper handling and storage procedures, and consider applying a conformal coating to protect the component from moisture. The component's moisture sensitivity level (MSL) is 3, as specified in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCM1608G-201-4P-T200 Overview

Use the download button to access the TCM1608G-201-4P-T200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCM16, or try a keyword search, such as Data Line Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
