TCM2-1T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MT / RoHS

Download TCM2-1T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

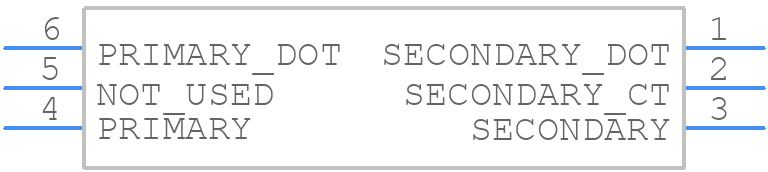

Symbol
TCM2-1T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCM2-1T+ - Mini-Circuits PCB footprint - Other - Other - TCM2-1T+-1
click to zoom
3D Models
TCM2-1T+ - Mini-Circuits - 3D model - Other - TCM2-1T+-1
click to zoom

TCM2-1T+ Details

  • Manufacturer Part Number:

    TCM2-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.38

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    3 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    4.06 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TCM2-1T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TCM2-1T+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The TCM2-1T+ can handle up to +15 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the device. Ensure your signal levels are within the recommended range to maintain optimal performance.
  • Yes, the TCM2-1T+ can be used in a differential configuration. However, you'll need to use an external balun or transformer to convert the single-ended signal to differential. Consult the datasheet and application notes for more information.
  • The TCM2-1T+ operates from -40°C to +85°C. Ensure your system design takes into account the temperature range to maintain optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCM2-1T+ Overview

Use the download button to access the TCM2-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCM2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
