TCM4-14+ - Mini-Circuits

Description: wide bandwidth, 200 to 1400 MHz

Download TCM4-14+ Model

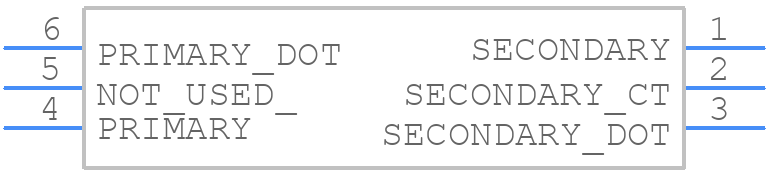

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCM4-14+ - Mini-Circuits PCB footprint - Other - Other - TCM4-14+-2
click to zoom
3D Models
TCM4-14+ - Mini-Circuits  - 3D model - Other - TCM4-14+-2
click to zoom

TCM4-14+ Details

  • Manufacturer Part Number:

    TCM4-14+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    1400 MHz

  • Cut-off Frequency-Min:

    200 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    4.06 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1400000 kHz

  • Operating Frequency-Min:

    200000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TCM4-14+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TCM4-14+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application notes.
  • The TCM4-14+ can handle up to +15 dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • The TCM4-14+ requires a positive voltage supply (Vcc) of +5V to +12V, and a negative voltage supply (Vee) of -5V to -12V. The recommended bias current is 50 mA to 100 mA. Consult the datasheet for more information on biasing and voltage supply requirements.
  • The TCM4-14+ operates over a temperature range of -40°C to +85°C. However, optimal performance is achieved between 0°C to +50°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCM4-14+ Overview

Use the download button to access the TCM4-14+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCM4-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
