Technical Content
Part Image

TCM4-25+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS

Download TCM4-25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

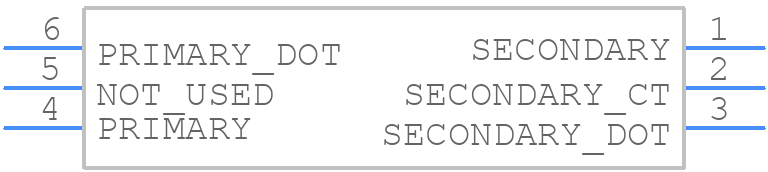

Symbol
TCM4-25+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCM4-25+ - Mini-Circuits PCB footprint - Other - Other - TCM4-25+-2
click to zoom
3D Models
TCM4-25+ - Mini-Circuits - 3D model - Other - TCM4-25+-2
click to zoom

TCM4-25+ Details

  • Manufacturer Part Number:

    TCM4-25+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO

  • Cut-off Frequency-Max:

    2500 MHz

  • Cut-off Frequency-Min:

    500 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    4.06 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TCM4-25+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TCM4-25+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-012.
  • The TCM4-25+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and longevity.
  • While the TCM4-25+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance. It's recommended to consult with a Mini-Circuits application engineer for guidance on using the TCM4-25+ in non-50 ohm systems.
  • The TCM4-25+ operates over a temperature range of -40°C to +85°C. However, the device's performance may vary over this range. It's essential to consult the datasheet and application notes for more information on temperature-related performance characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCM4-25+ Overview

Use the download button to access the TCM4-25+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCM4-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
