TCN2-122+ - Mini-Circuits

Description: Signal Conditioning 1:2 LTCC Transformer, 600 - 1200 MHz, 50 ohms

Download TCN2-122+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

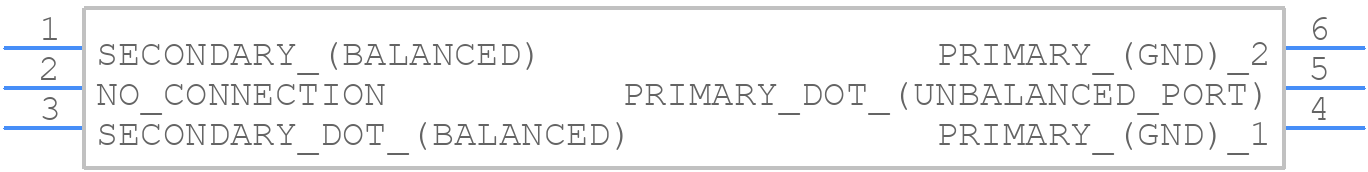

TCN2-122+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCN2-122+ - Mini-Circuits PCB footprint - Other - Other - TCN2-122+-2
click to zoom
3D Models
TCN2-122+ - Mini-Circuits - 3D model - Other - TCN2-122+-2
click to zoom

TCN2-122+ Details

  • Manufacturer Part Number:

    TCN2-122+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Max:

    1200 MHz

  • Cut-off Frequency-Min:

    600 MHz

  • Height:

    0.89 mm

  • Insertion Loss:

    1 dB

  • Length:

    3.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.6 mm

TCN2-122+ Frequently Asked Questions (FAQs)

  • The maximum power handling of TCN2-122+ is 20 W, but it's recommended to derate the power to 10 W for continuous operation to ensure reliability and prevent overheating.
  • Yes, TCN2-122+ can be used as both a splitter and a combiner. As a splitter, it can divide an input signal into two equal outputs, and as a combiner, it can combine two input signals into a single output.
  • The phase balance of TCN2-122+ is typically within ±10°, which means that the phase difference between the two output ports is within 10 degrees of each other.
  • Yes, TCN2-122+ is designed to operate up to 12.4 GHz, making it suitable for high-frequency applications such as microwave and millimeter-wave systems.
  • TCN2-122+ is rated for operation up to 65°C, but it's recommended to derate the power handling and operating frequency at higher temperatures to ensure reliability and prevent overheating.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TCN2-122+ Overview

Use the download button to access the TCN2-122+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCN2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
