TCN4-22+ - Mini-Circuits

Description: RF Balun 1.2GHz ~ 2.2GHz 1:4 6-SMD, No Lead

Download TCN4-22+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

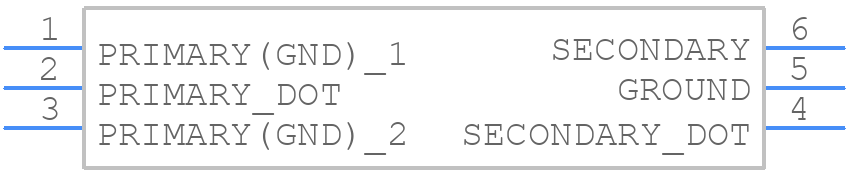

TCN4-22+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCN4-22+ - Mini-Circuits PCB footprint - Other - Other - FV1206-1_2025-2
click to zoom
3D Models
TCN4-22+ - Mini-Circuits - 3D model - Other - FV1206-1_2025-2
click to zoom

TCN4-22+ Details

  • Manufacturer Part Number:

    TCN4-22+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.45

  • Additional Feature:

    OHM RATIO IS 4

  • Cut-off Frequency-Min:

    1200 MHz

  • Height:

    0.89 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.6 mm

TCN4-22+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TCN4-22+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The maximum power handling of the TCN4-22+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. Exceeding this limit may cause damage to the device.
  • The TCN4-22+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure above 85°C may affect its performance and reliability. Consult with Mini-Circuits or a RF engineer for guidance on high-temperature applications.
  • Common issues with the TCN4-22+ include poor insertion loss, high return loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power supply connections. Consult the datasheet, application notes, and Mini-Circuits' technical support for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCN4-22+ Overview

Use the download button to access the TCN4-22+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCN4-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
