TCN4337M016R0070 - Kyocera AVX

Description: Tantalum Capacitors - Polymer SMD 16Volts 330uF 20% 2924 ESR=70mOhms

Download TCN4337M016R0070 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TCN4337M016R0070 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

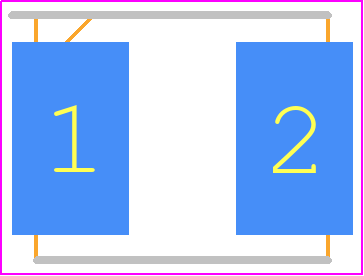

TCN4337M016R0070 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - TCN (CASE-4)
click to zoom
3D Models
TCN4337M016R0070 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - TCN (CASE-4)
click to zoom

TCN4337M016R0070 Details

  • Manufacturer Part Number:

    TCN4337M016R0070

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Capacitance:

    330 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (SOLID POLYMER)

  • ESR:

    70 mΩ

  • Height:

    2 mm

  • Length:

    7.3 mm

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Size Code:

    2924

  • Width:

    6 mm

TCN4337M016R0070 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the TCN4337M016R0070 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The maximum operating voltage derating for the TCN4337M016R0070 is 80% of the rated voltage, which is 16V in this case.
  • Yes, the TCN4337M016R0070 capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the TCN4337M016R0070 capacitor meets the requirements for automotive applications, including AEC-Q200 qualification and PPAP (Production Part Approval Process) documentation.
