TCNX108M006R0200 - Kyocera AVX

Description: Cap Tant Polymer 1000uF 6.3VDC X CASE 20% (7.3 X 4.3 X 1.5mm) Undertab SMD 7343-15 0.2 Ohm 85°C T/R

Download TCNX108M006R0200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TCNX108M006R0200 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

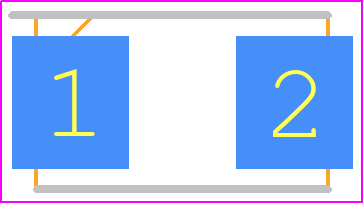

TCNX108M006R0200 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 2917*
click to zoom
3D Models
TCNX108M006R0200 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 2917*
click to zoom

TCNX108M006R0200 Details

  • Manufacturer Part Number:

    TCNX108M006R0200

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Capacitance:

    1000 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (SOLID POLYMER)

  • ESR:

    200 mΩ

  • Height:

    1.5 mm

  • Leakage Current:

    0.6 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    600 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Terminal Shape:

    ONE SURFACE

  • Width:

    4.3 mm

TCNX108M006R0200 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the TCNX108M006R0200 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the TCNX108M006R0200 is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6, with a vibration amplitude of 10mm and a frequency range of 10-2000 Hz.
  • Yes, the TCNX108M006R0200 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum operating temperature range for the TCNX108M006R0200 is -55°C to 125°C, with a derating of capacitance and ESR above 85°C.
  • Yes, the TCNX108M006R0200 is designed to operate in high-humidity environments and meets the requirements of IEC 60068-2-78, with a relative humidity of 90% and a temperature of 40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCNX108M006R0200 Overview

Use the download button to access the TCNX108M006R0200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCNX1, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
