TCP-2-10+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download TCP-2-10+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

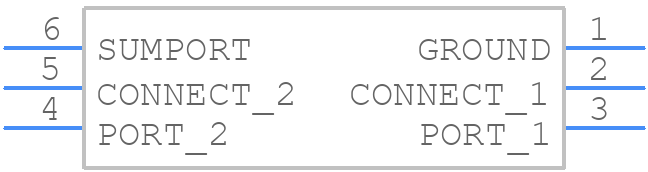

TCP-2-10+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCP-2-10+ - Mini-Circuits PCB footprint - Other - Other - DB714_2021
click to zoom
3D Models
TCP-2-10+ - Mini-Circuits - 3D model - Other - DB714_2021
click to zoom

TCP-2-10+ Details

  • Manufacturer Part Number:

    TCP-2-10+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT,CASE DB714, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.4

  • Additional Feature:

    ISOLATION-MIN (DB):16

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.28

TCP-2-10+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TCP-2-10+ is -40°C to +85°C.
  • Yes, the TCP-2-10+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance.
  • The TCP-2-10+ has a 50-ohm input and output impedance. To impedance-match, use a π-network or a T-network with resistors and capacitors to match the impedance of your system.
  • The maximum power handling of the TCP-2-10+ is +15 dBm. Exceeding this power level may cause damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCP-2-10+ Overview

Use the download button to access the TCP-2-10+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCP-2, or try a keyword search, such as RF/Microwave Splitter/Combiners
