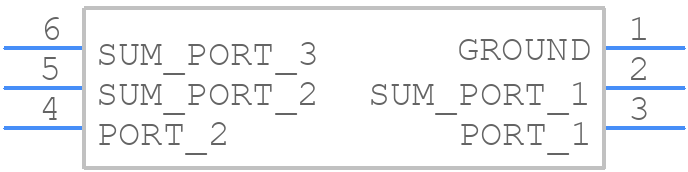

Symbol
TCP-2-25X+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCP-2-25X+ - Mini-Circuits PCB footprint - Other - Other - TCP-2-25X+-1
click to zoom
3D Models
TCP-2-25X+ - Mini-Circuits - 3D model - Other - TCP-2-25X+-1
click to zoom

TCP-2-25X+ Details

  • Manufacturer Part Number:

    TCP-2-25X+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.2

  • Additional Feature:

    ISOLATION-MIN (DB):10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • VSWR-Max:

    2.27
