TCP-2-272+ footprint, schematic symbol and 3D model by Mini-Circuits

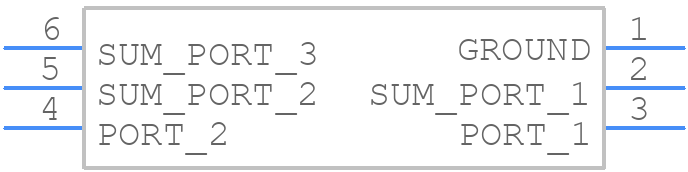

Symbol

click to zoom

PCB Footprints

TCP-2-272+ - Mini-Circuits PCB footprint - Other - Other - TCP-2-272+-2

click to zoom

3D Models

TCP-2-272+ - Mini-Circuits - 3D model - Other - TCP-2-272+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCP-2-272+
Part Number TCP-2-272+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - TCP-2-272+-2
Released Date Mar 23, 2020
Last Modified Date Oct 14, 2024 2:04 PM UTC
Pinout / Pin List Click Here (Member Only)

TCP-2-272+ Details

Manufacturer Part Number:
TCP-2-272+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CASE DB1627, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6.7
Additional Feature:
ISOLATION-MIN (DB):10
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
26.99 dBm
Insertion Loss-Max:
2 dB
Operating Frequency-Max:
2700 MHz
Operating Frequency-Min:
5 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
SPLITTER AND COMBINER
VSWR-Max:
2.5

TCP-2-272+ Frequently Asked Questions (FAQs)

The maximum operating temperature for the TCP-2-272+ is 65°C (149°F), but it's recommended to operate it at a maximum of 50°C (122°F) for optimal performance and reliability.
While the TCP-2-272+ is designed to operate in a normal indoor environment, it's not recommended to use it in high-humidity environments (>80% RH) without proper protection, as it may affect its performance and reliability.
For optimal performance, it's recommended to follow a 4-layer PCB layout with a solid ground plane, and to use a star-grounding scheme to minimize noise and radiation. Consult the application note from Mini-Circuits for more details.
The TCP-2-272+ is designed to operate in a normal vibration environment, but it's not recommended to use it in high-vibration environments (>5G) without proper mounting and mechanical protection, as it may affect its performance and reliability.
For optimal performance, it's recommended to use a low-ESR capacitor (e.g., 100nF) in parallel with a 10uF capacitor, placed as close as possible to the power pins of the TCP-2-272+.

Trust Checks

Expert Contribution

System Verified

Community Approved

TCP-2-272+ Overview

Use the download button to access the TCP-2-272+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TCP-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
