TCR15AG32 - Toshiba

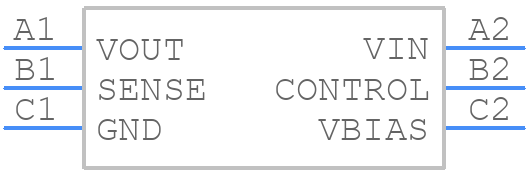

TCR15AG32 Details

• Manufacturer Part Number:

  TCR15AG32

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WCSP-6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-11-10

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6.1

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.648 V

• Dropout Voltage1-Nom:

  0.332 V

• Input Voltage Absolute-Max:

  6 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3.848 V

• JESD-30 Code:

  R-XBGA-B6

• Length:

  1.2 mm

• Line Regulation-Max:

  0.015%

• Load Regulation-Max:

  0.003%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  85 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  3.232 V

• Output Voltage1-Min:

  3.168 V

• Output Voltage1-Nom:

  3.2 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA6,2X3,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.33 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Voltage Tolerance-Max:

  1%

• Width:

  0.8 mm
