TCR15AG33,LF footprint, schematic symbol and 3D model by Toshiba

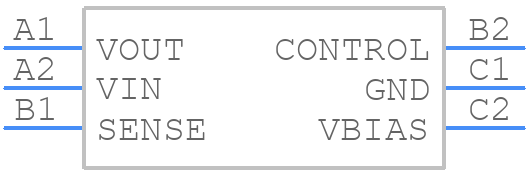

Symbol

click to zoom

PCB Footprints

TCR15AG33,LF - Toshiba PCB footprint - BGA - BGA - WCSP6F

click to zoom

3D Models

TCR15AG33,LF - Toshiba - 3D model - BGA - WCSP6F

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCR15AG33,LF
Part Number TCR15AG33,LF
Manufacturer Toshiba
Pin Count 6
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WCSP6F
Released Date Sep 3, 2018
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TCR15AG33,LF Details

Manufacturer Part Number:
TCR15AG33,LF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
WCSP-6
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
6.1
Adjustability:
FIXED
Dropout Voltage1-Max:
0.648 V
Dropout Voltage1-Nom:
0.332 V
Input Voltage Absolute-Max:
6 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
3.948 V
JESD-30 Code:
R-XBGA-B6
Length:
1.2 mm
Line Regulation-Max:
0.015%
Load Regulation-Max:
0.003%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature TJ-Max:
85 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
1.5 A
Output Voltage1-Max:
3.333 V
Output Voltage1-Min:
3.267 V
Output Voltage1-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Equivalence Code:
BGA6,2X3,16
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.33 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Voltage Tolerance-Max:
1%
Width:
0.8 mm

TCR15AG33,LF Frequently Asked Questions (FAQs)

Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliability, follow the recommended derating curves for temperature and current, and consider using a heat sink or thermal interface material. Also, ensure the device is operated within the specified junction temperature (Tj) range.
The maximum allowed voltage transient for the TCR15AG33,LF is 40V, as specified in the datasheet. Exceeding this value may damage the device.
Yes, the TCR15AG33,LF can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched and that the current sharing is balanced to avoid overheating or uneven stress.
Toshiba recommends storing the TCR15AG33,LF in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of 5°C to 30°C. Avoid storing the devices in direct sunlight or near heat sources.

Trust Checks

Community Provided

System Verified

Community Approved

TCR15AG33,LF Overview

Use the download button to access the TCR15AG33,LF schematic symbol, PCB footprint, and 3D model.
