TCR15AGADJ,LF - Toshiba

Description: LDO Voltage Regulators 1500mA LDO, Vout=0.6 to 3.6V, Dropout=120mV, Iq=25uA, PSRR=95dB, in WCSP6F package

Download TCR15AGADJ,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

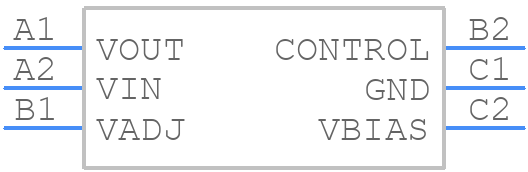

Symbol
TCR15AGADJ,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCR15AGADJ,LF - Toshiba PCB footprint - BGA - BGA - WCSP6F
click to zoom
3D Models
TCR15AGADJ,LF - Toshiba - 3D model - BGA - WCSP6F
click to zoom

TCR15AGADJ,LF Details

  • Manufacturer Part Number:

    TCR15AGADJ,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.2

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.648 V

  • Dropout Voltage1-Nom:

    0.332 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Load Regulation-Max:

    0.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

TCR15AGADJ,LF Frequently Asked Questions (FAQs)

  • The recommended land pattern for TCR15AGADJ,LF is a rectangle with dimensions of 2.5mm x 1.6mm, with a thermal pad of 1.5mm x 1.5mm in the center.
  • To ensure reliability, it's essential to follow the recommended derating guidelines, ensure proper thermal management, and consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum allowed voltage for the TCR15AGADJ,LF is 15V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • While the TCR15AGADJ,LF is suitable for high-frequency applications, it's essential to consider the device's parasitic capacitance and inductance, as well as the PCB layout, to minimize signal degradation and ensure optimal performance.
  • The TCR15AGADJ,LF has a built-in thermal shutdown protection that activates when the junction temperature exceeds 150°C. To handle this, ensure proper thermal management, and consider using a thermal monitoring circuit to detect and respond to thermal shutdown events.
