The recommended PCB layout for the TCS34303 involves placing the sensor near the edge of the PCB, with the photodiodes facing downwards to minimize interference from the PCB and other components. A ground plane underneath the sensor is also recommended to reduce noise.
To handle noise and interference in the TCS34303 output, use a low-pass filter with a cutoff frequency of around 100 Hz to 1 kHz, depending on the application. Additionally, use a shielded cable to connect the sensor to the microcontroller, and consider using a ferrite bead or common-mode choke to reduce electromagnetic interference.
The optimal distance between the TCS34303 and the light source depends on the specific application and the type of light source. As a general rule, the distance should be as short as possible while still allowing for accurate measurements. A distance of 1-5 mm is typical for most applications.
Calibration of the TCS34303 involves adjusting the gain and offset of the sensor to match the specific requirements of the application. This can be done by taking measurements with a known light source and adjusting the gain and offset accordingly. It is also recommended to perform a dark calibration to account for any offset voltage.
The TCS34303 can handle ambient light levels up to 100,000 lux, which is equivalent to direct sunlight. However, the sensor may saturate at higher light levels, so it is recommended to use an optical filter or reduce the gain to prevent saturation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCS34303 Overview

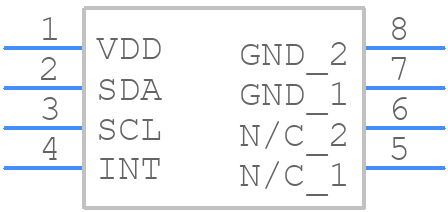

Use the download button to access the TCS34303 schematic symbol, PCB footprint, and 3D model.
