TCW2-2700+ - Mini-Circuits

Description: Signal Conditioning 1:2 LTCC Transformer, 500 - 2700 MHz, 50 Ohm

Download TCW2-2700+ Model

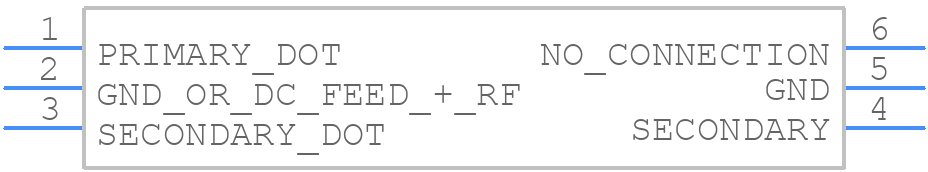

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCW2-2700+ - Mini-Circuits PCB footprint - Other - Other - JC0603C
click to zoom
3D Models
TCW2-2700+ - Mini-Circuits  - 3D model - Other - JC0603C
click to zoom

TCW2-2700+ Details

  • Manufacturer Part Number:

    TCW2-2700+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.51

  • Cut-off Frequency-Max:

    2700 MHz

  • Cut-off Frequency-Min:

    500 MHz

  • Height:

    0.61 mm

  • Insertion Loss:

    1.7 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.79 mm

TCW2-2700+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TCW2-2700+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
  • The maximum power handling of the TCW2-2700+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The TCW2-2700+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure to temperatures above 85°C can affect its performance and reliability. If your application requires high-temperature operation, consider using a thermally enhanced package or a heat sink to maintain a safe operating temperature.
  • Common issues with the TCW2-2700+ include poor return loss, high insertion loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure that the device is properly soldered and that there are no signs of damage or overheating. Consult the datasheet and application notes for more information on troubleshooting and debugging.
