TCW2-282+ - Mini-Circuits

Description: Signal Conditioning 1:2 LTCC Transformer, 700 - 2800 MHz, 50ohm

Download TCW2-282+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

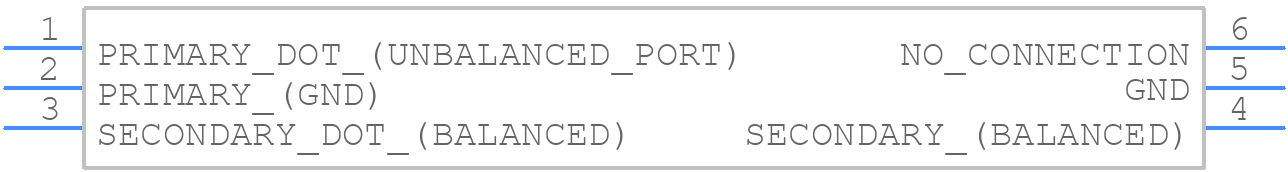

Symbol
TCW2-282+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCW2-282+ - Mini-Circuits PCB footprint - Other - Other - TCW2-282+-1
click to zoom
3D Models
TCW2-282+ - Mini-Circuits - 3D model - Other - TCW2-282+-1
click to zoom

TCW2-282+ Details

  • Manufacturer Part Number:

    TCW2-282+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Min:

    700 MHz

  • Height:

    0.61 mm

  • Insertion Loss:

    2 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    0.79 mm

TCW2-282+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TCW2-282+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as using a thermal pad or a heat sink attached to the device. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • The TCW2-282+ can handle up to 2W of power. However, it's essential to derate the power handling capability based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the TCW2-282+ can be used in a push-pull configuration. However, it's essential to ensure that the devices are properly matched and biased to avoid uneven current distribution and potential oscillations.
  • The recommended biasing scheme for the TCW2-282+ is typically a voltage-controlled current source. Mini-Circuits provides a recommended biasing scheme in their application notes, which can be found on their website.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCW2-282+ Overview

Use the download button to access the TCW2-282+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCW2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
