- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TCW2-6000+
- Part Number TCW2-6000+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TCW2-6000+-1
- Released Date Apr 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCW2-6000+ Details
-
Manufacturer Part Number:
TCW2-6000+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Additional Feature:
OHMS RATIO IS 2
-
Cut-off Frequency-Min:
3100 MHz
-
Height:
0.61 mm
-
Insertion Loss:
1.8 dB
-
Length:
1.6 mm
TCW2-6000+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The TCW2-6000+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application notes.
-
The TCW2-6000+ can handle up to 2W of continuous power. However, it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
-
The TCW2-6000+ requires a positive bias voltage of 12-15V and a current of 100-150mA. It's essential to use a high-quality voltage regulator and decoupling capacitors to ensure a stable bias voltage.
-
The TCW2-6000+ operates over a temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's essential to consider temperature compensation and derating in your design.
Trust Checks
Expert Contribution
System Verified
Community Approved
TCW2-6000+ Overview

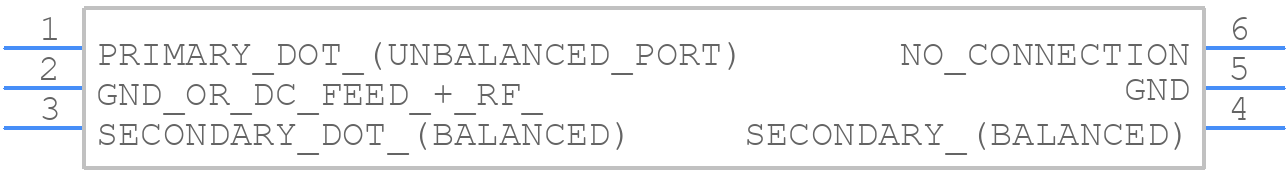

Use the download button to access the TCW2-6000+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCW2-,
or try a keyword search, such as RF Transformers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
