TCW2-722+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download TCW2-722+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

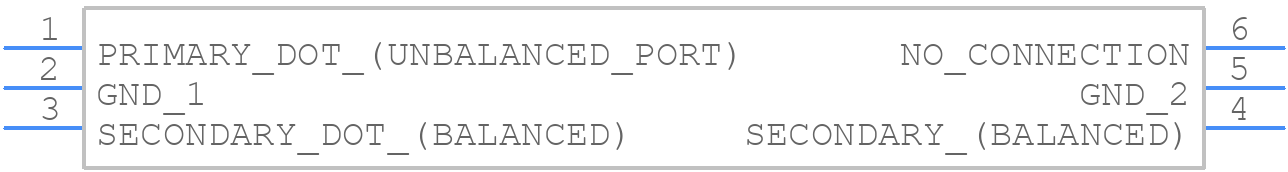

TCW2-722+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCW2-722+ - Mini-Circuits PCB footprint - Other - Other - TCW2-722+-1
click to zoom
3D Models
TCW2-722+ - Mini-Circuits - 3D model - Other - TCW2-722+-1
click to zoom

TCW2-722+ Details

  • Manufacturer Part Number:

    TCW2-722+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    7125 MHz

  • Cut-off Frequency-Min:

    2400 MHz

  • Height:

    0.66 mm

  • Insertion Loss:

    1.9 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.81 mm

TCW2-722+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TCW2-722+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The TCW2-722+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
  • The TCW2-722+ is a commercial-grade component and may not meet the requirements for high-reliability or space applications. Mini-Circuits offers a range of high-reliability components, such as the TCW2-722HS+, which is designed for these applications.
  • Yes, the TCW2-722+ can be used in a push-pull or balanced configuration. However, it's essential to ensure that the component is properly biased and matched to achieve optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCW2-722+ Overview

Use the download button to access the TCW2-722+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCW2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
