TD301D485 - Mornsun Power

Description: Single RS485 isolation transceiver module

Download TD301D485 Model

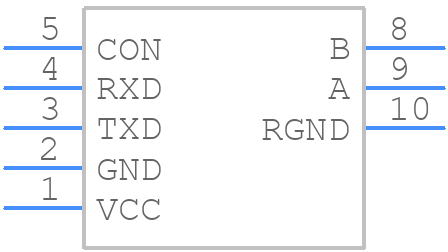

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

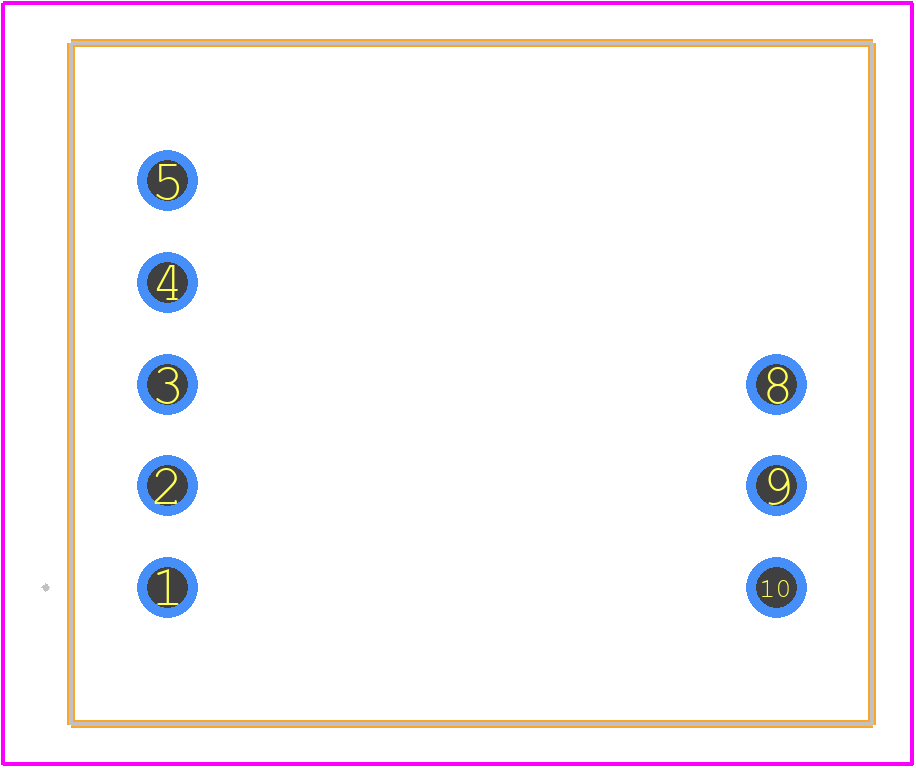

PCB Footprints
TD301D485 - Mornsun Power PCB footprint - Other - Other - TD301D485-2
click to zoom
3D Models
TD301D485 - Mornsun Power  - 3D model - Other - TD301D485-2
click to zoom

TD301D485 Details

  • Manufacturer Part Number:

    TD301D485

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MORNSUN

  • Interface IC Type:

    INTERFACE CIRCUIT

TD301D485 Frequently Asked Questions (FAQs)

  • MORNSUN recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. Keep the input and output traces as short as possible and avoid routing them near each other to minimize noise and EMI.
  • Use shielded cables, twisted pairs, or coaxial cables to connect the TD301D485 to the RS-485 bus. Also, consider using a common mode choke or a ferrite bead to filter out high-frequency noise. Additionally, ensure that the TD301D485 is properly grounded and that the system is designed to meet the required noise immunity standards.
  • The maximum cable length supported by the TD301D485 depends on the baud rate and the cable characteristics. As a general rule, the maximum cable length is 1200 meters at 9600bps, 600 meters at 19200bps, and 300 meters at 38400bps. However, it's recommended to consult the RS-485 standard and perform tests to determine the maximum cable length for a specific application.
  • Yes, the TD301D485 supports multi-drop configuration. However, the total bus length and the number of nodes must be carefully planned to ensure reliable communication. It's recommended to follow the RS-485 standard and perform tests to determine the maximum number of nodes and bus length for a specific application.
  • Use a logic analyzer or an oscilloscope to monitor the RS-485 bus signals. Check for signal integrity, noise, and distortion. Verify that the TD301D485 is properly configured and that the baud rate, data bits, and stop bits match the requirements of the application. Also, check the power supply and ensure that it meets the required specifications.
