MORNSUN recommends a 4-layer PCB with a solid ground plane and a separate power plane for the CAN transceiver. The layout should also ensure that the CANH and CANL traces are routed close together and as short as possible to minimize electromagnetic interference (EMI).
To ensure reliable communication in noisy environments, MORNSUN recommends using a common-mode choke or a ferrite bead in series with the CAN bus lines to filter out high-frequency noise. Additionally, using a shielded cable and terminating the bus lines with a 120-ohm resistor can also help to reduce noise and improve signal integrity.
The maximum cable length supported by the TD301MCAN is dependent on the specific application and the quality of the cable. However, as a general guideline, MORNSUN recommends keeping the cable length below 40 meters to ensure reliable communication. Longer cable lengths may require the use of repeaters or other signal conditioning devices.
To troubleshoot CAN bus communication issues with the TD301MCAN, MORNSUN recommends using a CAN bus analyzer tool to monitor the bus traffic and identify any errors or anomalies. Additionally, checking the power supply voltage, signal integrity, and termination resistors can also help to identify the root cause of the issue.
The TD301MCAN is a standard CAN transceiver that is compatible with other CAN transceivers and controllers that conform to the ISO 11898-2 standard. However, MORNSUN recommends verifying the compatibility of the specific devices and systems being used to ensure reliable communication.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TD301MCAN Overview

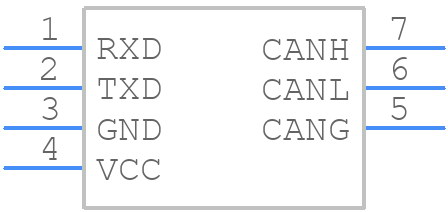

Use the download button to access the TD301MCAN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD301,
or try a keyword search, such as Network Interfaces
