TD301MCANFD - Mornsun Power

Description: Single high-speed CANFD isolated transceiver module in compact DIP8 size package

Download TD301MCANFD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TD301MCANFD - Mornsun Power PCB footprint - Other - Other - TD301MCANFD-1
click to zoom
3D Models
TD301MCANFD - Mornsun Power  - 3D model - Other - TD301MCANFD-1
click to zoom

TD301MCANFD Details

  • Manufacturer Part Number:

    TD301MCANFD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MORNSUN

  • Telecom IC Type:

    INTERFACE CIRCUIT

TD301MCANFD Frequently Asked Questions (FAQs)

  • MORNSUN recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the device pins. A thermal pad on the bottom of the device should be connected to a solid ground plane for heat dissipation.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves for output power and input voltage. Also, ensure good airflow around the device, and consider using a heat sink or thermal interface material to improve heat dissipation.
  • The maximum cable length for the CAN bus interface depends on the specific application and the baud rate used. As a general guideline, the maximum cable length should not exceed 40 meters at a baud rate of 1 Mbps. For longer cable lengths, consider using a CAN bus repeater or a fiber optic interface.
  • To troubleshoot issues with the CAN bus interface, use a CAN bus analyzer tool to monitor the bus activity and identify any error frames or bus faults. Check the termination resistors, cable connections, and the CAN bus transceiver configuration. Also, ensure that the device is properly configured and that the CAN bus is not overloaded.
  • The recommended input voltage range for the TD301MCANFD is 9-36V DC, with a typical input voltage of 12V or 24V DC. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TD301MCANFD Overview

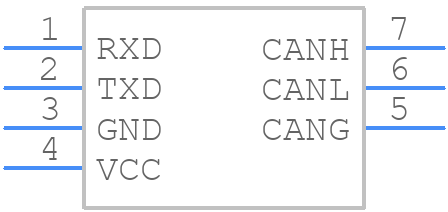

Use the download button to access the TD301MCANFD schematic symbol, PCB footprint, and 3D model.
