MORNSUN recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended.
Yes, the TD331S232H is designed to withstand vibrations up to 10G (10-2000Hz) and can be used in high-vibration environments. However, it's recommended to follow proper mounting and soldering procedures to ensure reliability.
To ensure EMC, MORNSUN recommends using a shielded cable for the RS-232 interface, keeping the DC-DC converter away from sensitive circuits, and following proper PCB layout and grounding practices.
The maximum recommended cable length for the RS-232 interface is 50 feet (15 meters) to ensure reliable data transmission. Longer cable lengths may require additional signal conditioning or repeaters.
The TD331S232H is designed to operate in a relative humidity range of 20% to 80%. However, it's not recommended for use in wet or submerged environments. If used in humid environments, ensure proper conformal coating and sealing to prevent moisture ingress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TD331S232H Overview

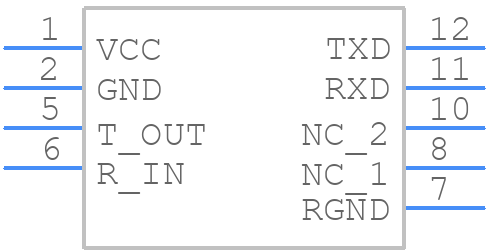

Use the download button to access the TD331S232H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD331,
or try a keyword search, such as Other Interface ICs
