Part Image

TD331S485-L - Mornsun Power

Description: Low power consumption single RS485 isolated transceiver module, SMD package two-port isolation test voltage (2.5kVDC) Input 3.15-3.45Vdc 8mA L17xW12.14xH9.45mm

Download TD331S485-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

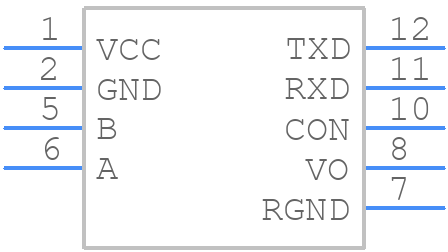

TD331S485-L - Mornsun Power - PCB symbol
click to zoom
PCB Footprints
TD331S485-L - Mornsun Power PCB footprint - Other - Other - TD331S485-L-1
click to zoom
3D Models
TD331S485-L - Mornsun Power - 3D model - Other - TD331S485-L-1
click to zoom

TD331S485-L Details

  • Manufacturer Part Number:

    TD331S485-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    MORNSUN

  • Interface IC Type:

    INTERFACE CIRCUIT

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TD331S485-L Overview

Use the download button to access the TD331S485-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD331, or try a keyword search, such as Other Interface ICs
