TD62003APG,N - Toshiba

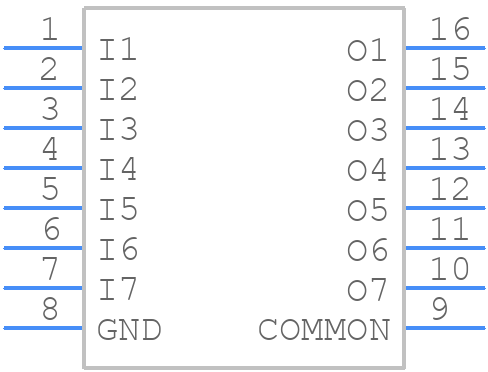

TD62003APG,N Details

• Manufacturer Part Number:

  TD62003APG,N

• Part Life Cycle Code:

  End Of Life

• Package Description:

  DIP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0.4

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  7

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.25 mm

• Number of Functions:

  7

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-COLLECTOR

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  0.37 A

• Output Peak Current Limit-Nom:

  0.5 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  4.45 mm

• Supply Current-Max:

  0.7 mA

• Supply Voltage-Max:

  24 V

• Supply Voltage-Nom:

  2.4 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.2 µs

• Turn-on Time:

  0.1 µs

• Width:

  7.62 mm
