TD62083AP(J,S) footprint, schematic symbol and 3D model by Toshiba

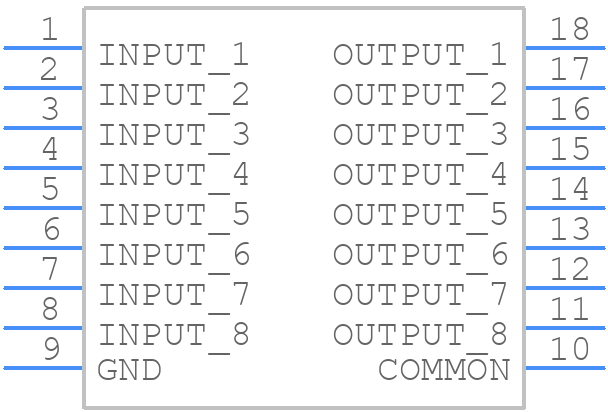

Symbol

click to zoom

PCB Footprints

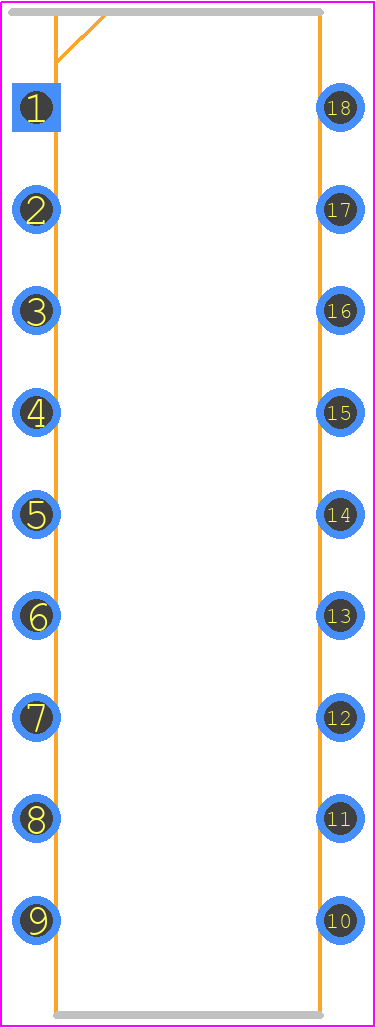

TD62083AP(J,S) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP18−P−300−2.54D

click to zoom

3D Models

TD62083AP(J,S) - Toshiba - 3D model - Dual-In-Line Packages - DIP18−P−300−2.54D

click to zoom

Datasheet
Stock & Prices Price & Stock for TD62083AP(J,S)
Part Number TD62083AP(J,S)
Manufacturer Toshiba
Pin Count 18
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP18−P−300−2.54D
Released Date Jul 14, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TD62083AP(J,S) Details

Manufacturer Part Number:
TD62083AP(J,S)
Manufacturer:
Toshiba America Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

TD62083AP(J,S) Overview

Use the download button to access the TD62083AP(J,S) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TD620, or try a keyword search, such as Peripheral Drivers
