Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and consider derating the device's power dissipation. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material.
The TD62083APG(5,J,S) has built-in ESD protection diodes on the input pins, which can withstand up to ±2kV according to the Human Body Model (HBM) and ±200V according to the Machine Model (MM). However, it's still recommended to follow proper ESD handling procedures during assembly and testing.
While the TD62083APG(5,J,S) is a high-quality device, it's essential to consult with Toshiba's sales representative or application engineer to discuss the specific requirements of your high-reliability or automotive application. They can provide guidance on the device's suitability and any necessary qualifications or certifications.
Store the TD62083APG(5,J,S) in a dry, cool place (below 30°C and 60% RH) away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads, to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TD62083APG(5,J,S) Overview

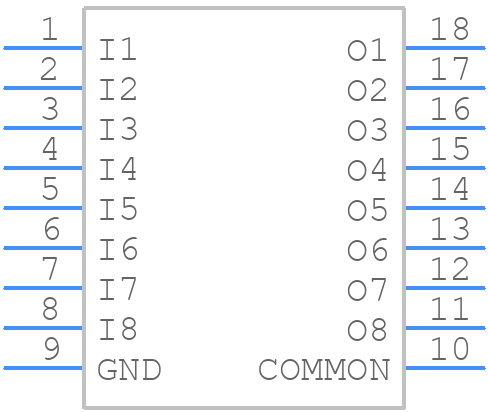

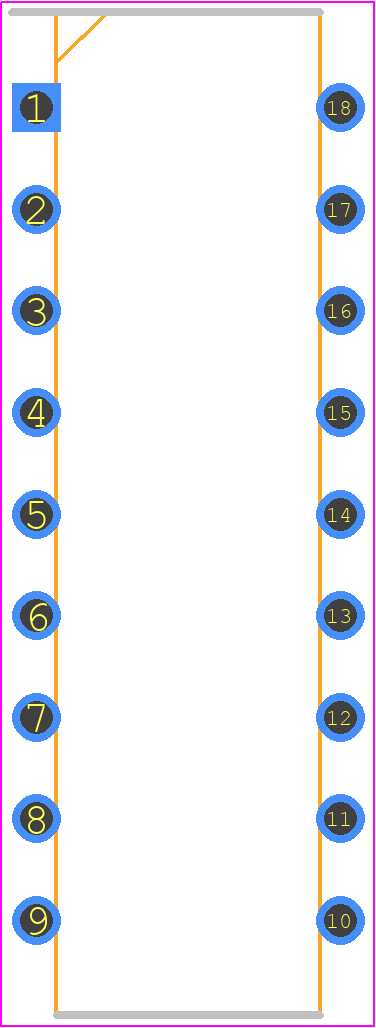

Use the download button to access the TD62083APG(5,J,S) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD620,
or try a keyword search, such as Peripheral Drivers
