TD62783APG,J,S - Toshiba

Description: IC DRIVER DARL SOURCE 8CH 18-DIP

Download TD62783APG,J,S Model

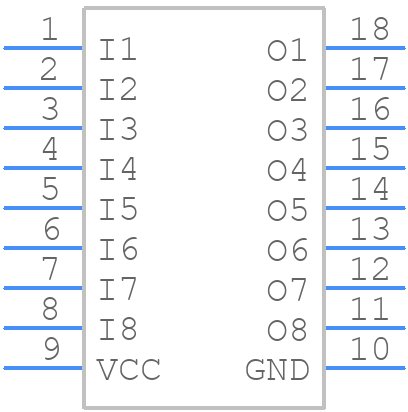

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

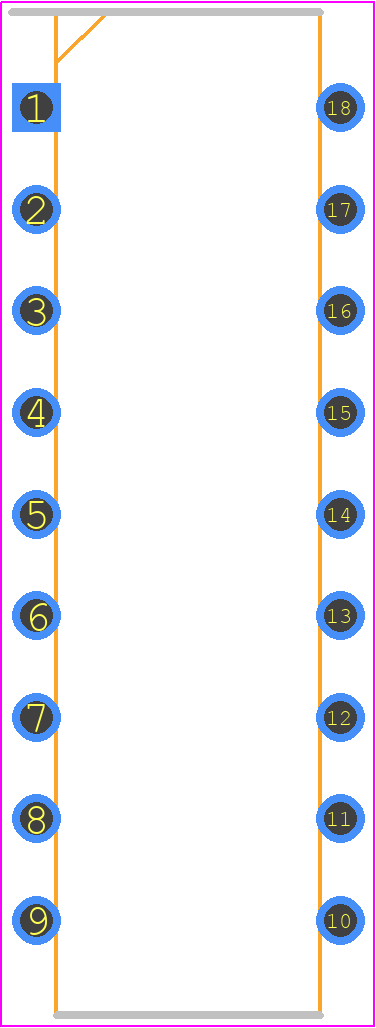

PCB Footprints
TD62783APG,J,S - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP18-P
click to zoom
3D Models
TD62783APG,J,S - Toshiba  - 3D model - Dual-In-Line Packages - DIP18-P
click to zoom

TD62783APG,J,S Details

  • Manufacturer Part Number:

    TD62783APG,J,S

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    22.86 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    -0.059 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.8 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    50 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TD62783APG,J,S Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TD62783APG,J,S is 4.5V to 18V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the output pin and ground, and to keep the input voltage stable.
  • The maximum output current that the TD62783APG,J,S can provide is 3A.
  • To protect the TD62783APG,J,S from overheating, it is recommended to provide adequate heat sinking, such as a heat sink or a metal plate, and to ensure good airflow around the device.
  • The enable pin (EN) on the TD62783APG,J,S is used to turn the device on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.
