TDA06H0SB1R - LITTELFUSE

Description: Switch DIP OFF ON SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R

Download TDA06H0SB1R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TDA06H0SB1R model

Email notifications will be applied after download.

Send part feedback

Symbol

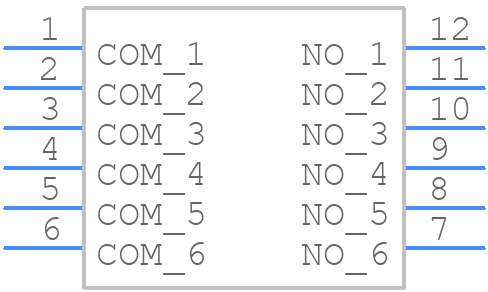

TDA06H0SB1R - LITTELFUSE - PCB symbol

PCB Footprints

TDA06H0SB1R - LITTELFUSE PCB footprint - Other - Other - TDA06H0SB1R-1

3D Models

TDA06H0SB1R - LITTELFUSE - 3D model - Other - TDA06H0SB1R-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA06H0SB1R
Part Number TDA06H0SB1R
Manufacturer LITTELFUSE
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - TDA06H0SB1R-1
Released Date Aug 6, 2019
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA06H0SB1R Details

Manufacturer Part Number:
TDA06H0SB1R
Manufacturer:
Littelfuse Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TDA06H0SB1R Overview

Use the download button to access the TDA06H0SB1R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TDA06, or try a keyword search, such as DIP Switches
