TDA1543 - NXP

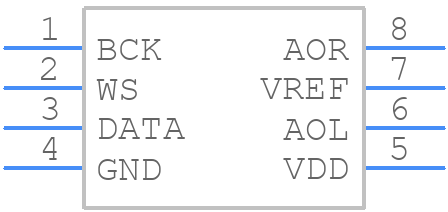

TDA1543 Details

• Manufacturer Part Number:

  TDA1543

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, DIP-8

• Pin Count:

  8

• HTS Code:

  8542.39.00.40

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Analog Output Voltage-Max:

  3.8 V

• Analog Output Voltage-Min:

  1.8 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.5 mm

• Number of Bits:

  16

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.2 mm

• Settling Time-Nom (tstl):

  0.5 µs

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
