Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
The maximum allowed voltage drop across the TDA387400000AUMA1 is typically limited by the device's power dissipation and thermal performance. As a general guideline, the voltage drop should be kept below 1V to ensure reliable operation and prevent overheating.
The TDA387400000AUMA1 is rated for operation up to 150°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal performance, power dissipation, and cooling mechanisms when operating in high-temperature environments.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly connected and sized. Also, verify that the device is properly configured and that there are no layout or component issues affecting the device's performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA387400000AUMA1 Overview

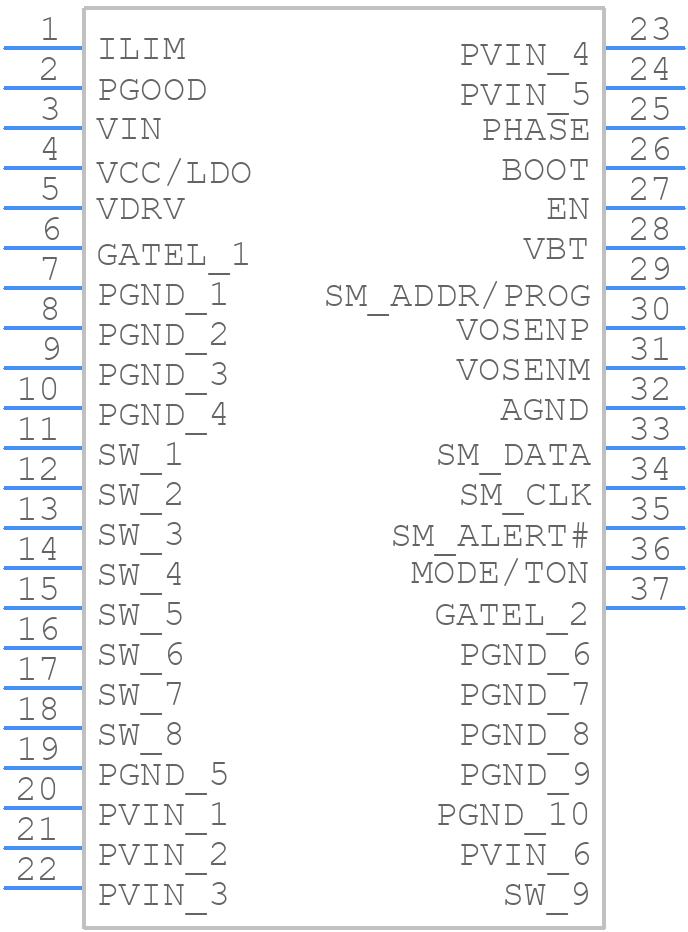

Use the download button to access the TDA387400000AUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA38,
or try a keyword search, such as Switching Regulator or Controllers
