Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
Infineon provides a component selection guide in the datasheet, which includes recommendations for capacitors, resistors, and inductors. Additionally, the application note AN2019-01 provides more detailed guidance on component selection and layout considerations.
The TDA38826XUMA1 is specified to operate from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. It's recommended to consult with Infineon's technical support team for specific guidance on temperature range and derating.
Infineon provides a troubleshooting guide in the application note AN2019-01, which includes common issues, symptoms, and solutions. Additionally, the datasheet provides guidance on fault detection and protection features, such as overtemperature protection and undervoltage lockout.
Infineon recommends a soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's recommended to consult the datasheet and Infineon's soldering guide for more detailed information on soldering profiles and reflow conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA38826XUMA1 Overview

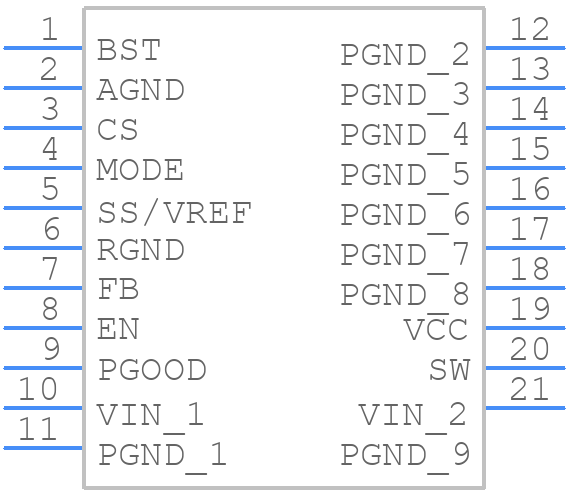

Use the download button to access the TDA38826XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA38,
or try a keyword search, such as Switching Regulator or Controllers
