TDA38827AUMA1 - Infineon

Description: 25 A single-voltage synchronous Buck regulator

Download TDA38827AUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

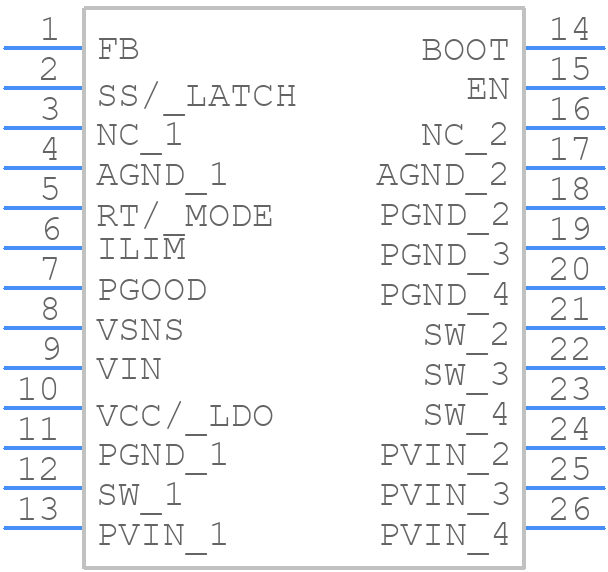

TDA38827AUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA38827AUMA1 - Infineon PCB footprint - Other - Other - PG-IQFN-22-2
click to zoom
3D Models
TDA38827AUMA1 - Infineon - 3D model - Other - PG-IQFN-22-2
click to zoom

TDA38827AUMA1 Details

  • Manufacturer Part Number:

    TDA38827AUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XQCC-N16

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    5 mm

TDA38827AUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency sources, and ensure proper grounding and decoupling of the device. Follow Infineon's EMC guidelines for automotive applications.
  • The maximum allowed voltage on the VCC pin is 18V, but it's recommended to operate within the specified range of 6.5V to 16V for optimal performance and reliability.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply and decoupling, and verify the PCB layout and thermal design. Consult Infineon's application notes and support resources for guidance.
  • While the TDA38827AUMA1 is designed for automotive applications, it can be used in other applications with similar requirements. However, ensure that the device meets the specific requirements of your application, and consult with Infineon's support team if necessary.
